Machine Z-PBM 1236 manufactures 12 hollow blocks of 20x20x40 at one time and 36 interlocking paving stones of 163x198x80 at one time. For all products manufactured with a specially designed vibrator system and 4-point mold support system, it is capable of applying maximum compression without length difference, maximizing the quality of manufacture.

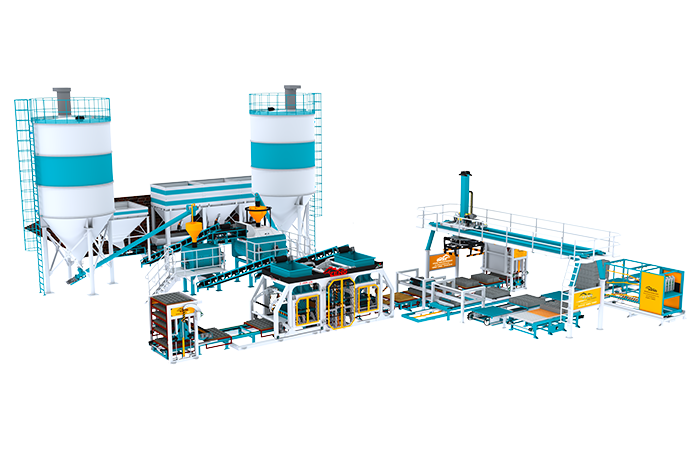

ZENG, together with the customer, develops specific designs depending on the available space in the customer’s location, and develops different installation designs.
|
Control System
Full Automatic / PLC Control System
|
Hourly Output
2250 pcs. 20 x 20 x 40 blok - 1000 m2 Paving Blocks
|
Width of Machine
2650 mm
|
|
Pallet Dimensions
Footed Pallet: 1450 x 1150 x 50 mm
|
Electrical System
Schneider – Siemens-ABB
|
Hourly Output
11 kw x2
|
|
Length of Machine
8000 mm
|
Height of Machine
3100 mm
|
Minimum Manufacturing Height
60 mm
|
|
Maximum Manufacturing Height
240 mm
|
Hydraulic Pressure
200 - Bar
|
Operating Pressure
140 -Bar
|
|
