Z-BM 6

Product Description
Z-BM 6 - Semi Automatic

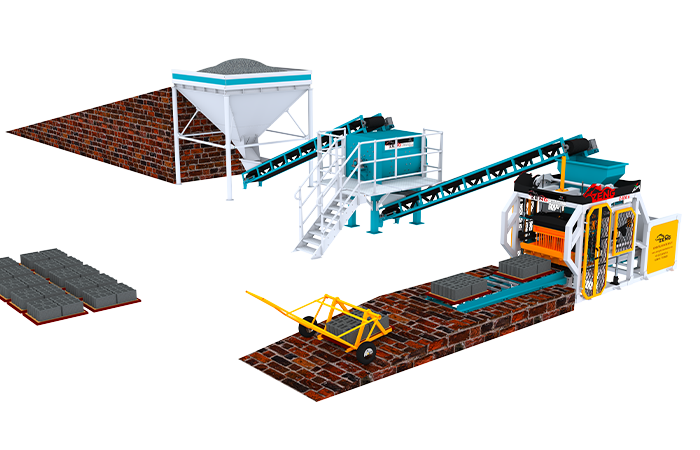

Machine Z-BM 6 is a semi-automatic machine and fully controlled by hydraulic moving control levers. It manufactures 6 hollow block of 20x20x40 at one time. It is capable of manufacturing hollow block in any size by changing the mold. For all products manufactured with a specially designed vibrator system and 4-point mold support system, it is capable of applying maximum compression without length difference, maximizing the quality of manufacture.

Control System
Semi-automatic / Manual control
Hourly Output
750 pcs. 20 x 20 x 40 blocks
Width of Machine
1750 mm
Pallet Dimensions
Footless Pallet: 950 x 700 x 35 mm
Electrical System
Schneider – Siemens-ABB
Hourly Output
7.5 kw x2
Length of Machine
3900 mm
Height of Machine
2650 mm
Minimum Manufacturing Height
60 mm
Maximum Manufacturing Height
240 mm
Hydraulic Pressure
140 - Bar
Operating Pressure
80 -Bar
39 kw
